Call John at 1-888-403-9012, or email john@hydrobikes.com for assistance, to determine what you need, or to order genuine Hydrobike parts. I can diagnose your problem or your parts requirement over the phone. I can also walk you through servicing, parts replacements, or repairs. I have pictures and easy to follow instructions I can send you via email so you can perform your own repairs quickly. I also specialize in the repair & rebuilding of drivetrains to factory specifications. Although I don’t recommend you attempt to open the driveunit, the mechanically inclined ‘do it yourselfers’, can call me for help.
Main Content
Available Hydrobike Parts and Accessories
*All Parts Prices in US Funds
| Console | Factory Part # | Price |
|---|---|---|

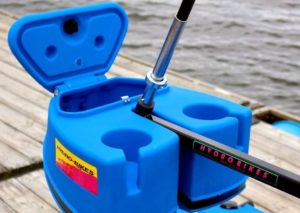

| Console for storage Blue | 2101 | $159.00 |
| Console for storage Hunter | 2102 | $159.00 |
| Console for storage Purple | 2103 | $159.00 |
| Deck | Factory Part # | Price |

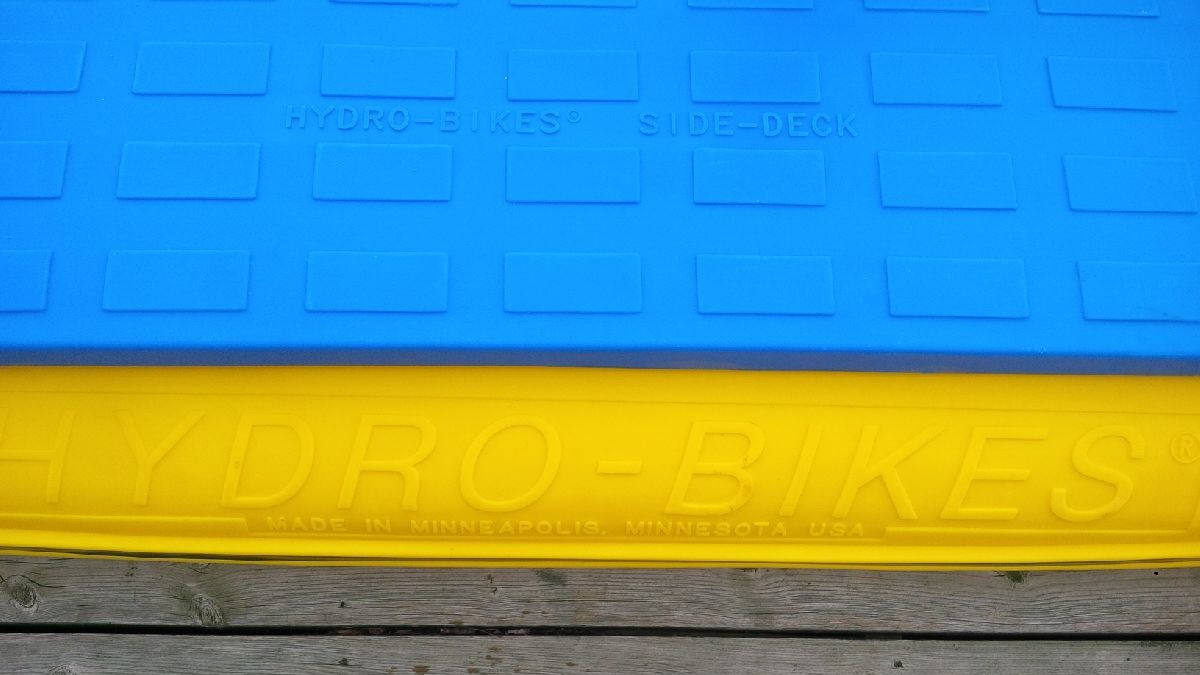

| Poly Deck Blue | 1341 | $159.00 |
| Poly Deck Purple | 1342 | $159.00 |
| Poly Deck Hunter | 1343 | $159.00 |
| Cross Tubes | Factory Part # | Price |
| Cross Tube Assembly Double Unit (2 pcs) | 2360 | $229.00 |
| Cross Tube Assembly Single Unit (2 pcs) | 2350 | $179.00 |
| Drivetrain Assembly | Factory Part # | Price |
| Drivetrain Assembly | 2200 | $899.00 |
| Tape, Drivetrain Top Wrap 15″ long x 2″ | 1000660 | $4.20 |
| Pinion Bevel Gear for Prop Shaft | 1233 | $45.75 |
| Sprocket Bevel Assembly 7/16 Bore, 2 pc | 1002136 | $218.50 |

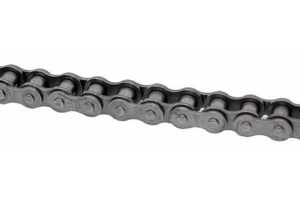

| Drive Chain Internal 35 132 Pitches | 1221 | $54.50 |

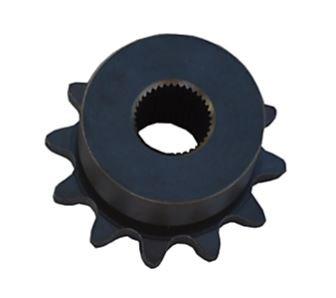

| Sprocket 12 Teeth 1/2″ bore | 1002138 | $39.15 |

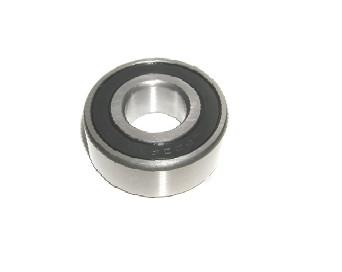

| Bearing 1615 .4375” Shaft Steel | 1278 | $12.60 |

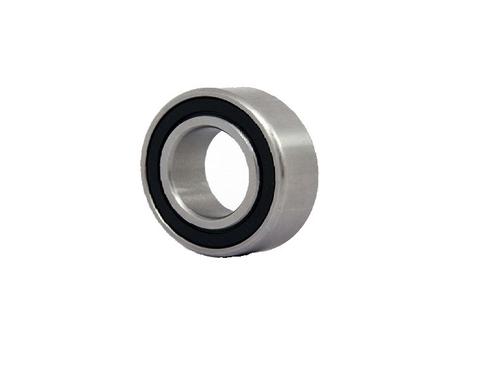

| Bearing 1621 Open Seal .25 Shaft Steel | 1277 | $13.20 |

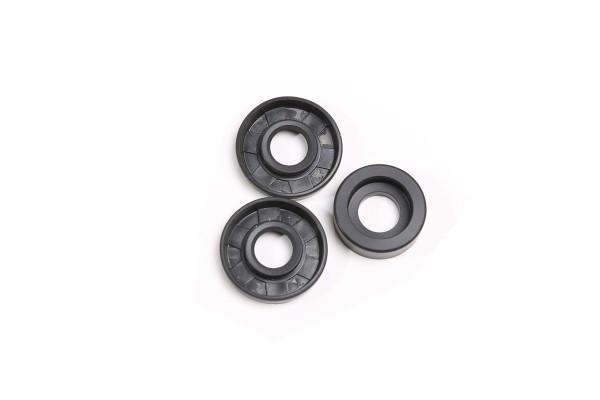

| Prop Seals, Oil .625 ID x 1.375 OD | 2245 | $19.60 |
| Pin, Steel Dowel 7/16 x 2.0 | 1002143 | $7.90 |
| Propeller Axle 1/2 Diameter Stainless | 1241 | $39.00 |

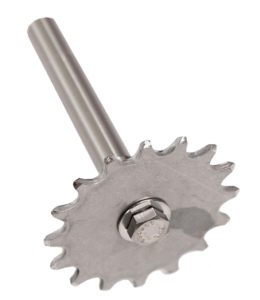

| Upper Axle With Sprocket 5/8 Diameter | 2235 | $69.95 |
| Friction Lock with screws, instructions | 2265 | $42.00 |
| Housing Drivetrain Large Section | 1002147 | $98.75 |
| Housing Drivetrain Small Section | 1002148 | $89.50 |
| Nylon Lock Nut For Drivetrain Housing | 1002149 | $.90 |
| O-Ring for Drivetrain Housing | 1002150 | $.45 |
| Grooved Pin, Prop Shaft Connect to Gear | 1002151 | $3.45 |

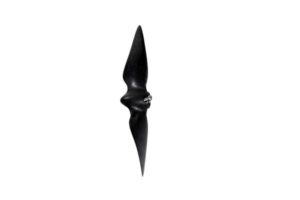

| Propeller Assembly | 1002152 | $49.00 |
| Propeller Pin, Pan Head 1.5 | 1002153 | $1.85 |
| Nylon Lock Nut for Propeller Pin | 1002154 | $1.40 |
| Pan Head Phillips Screw 10-32 5/8 | 1002155 | $1.19 |
| Pan Head Phillips Screw 10-32 | 1002156 | $1.19 |
| Drain Plug 1/4 x 1/2; Binding Head | 1002157 | $2.13 |
| Screw SMS Truss #8 x .75 SS 304 | 1002158 | $1.20 |
| Shim .5 ID x .75 OD x .010 Thick | 1002159 | $2.45 |
| Shim .5 ID x .75 OD x .025 Thick | 1002160 | $2.45 |
| Shim .75 ID x 1.125 OD x .010 Thick | 1002161 | $2.45 |
| Drivetrain Housing Sealant | 2192 | $29.95 |

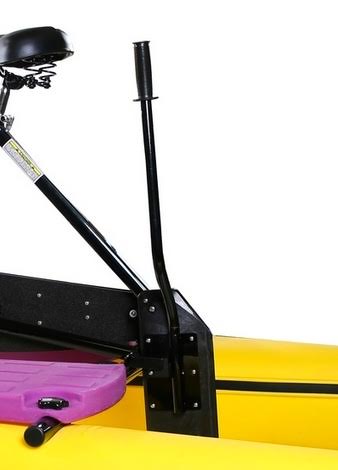

| Lever Arm Assembly, Bracket, Quick Release Lever Arm | 2270 | $119.00 |
| O-ring Drainplug Drivetrain | 1002165 | $.70 |
| Shim .020 x .75 x 1.125 OD | 1002166 | $2.45 |
| Strut Bumper w/angle 65D | 1002176 | $19.50 |
| Floats | Factory Part # | Price |

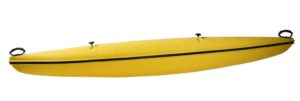

| Float, yellow or hunter | 2030 | $249.00 |
| Pontoon Tape 1″ Black 36 yd roll | 1781 | $35.00 |

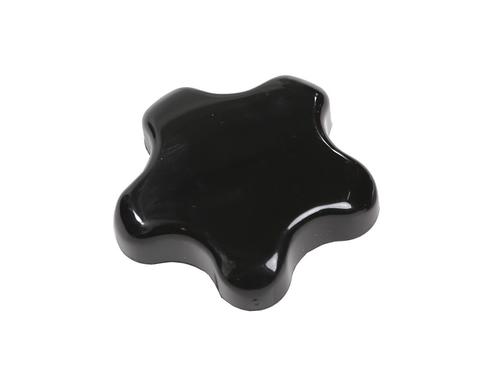

| Frame / Float Knobs | 1761 | $3.95 |

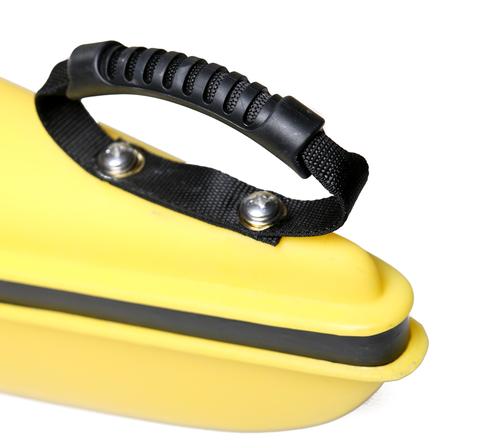

| Pontoon Carry Straps, Old Style | 2335 | $12.50 |
| Pontoon Carry Straps, New (2 fasten points) | 2330 | $12.50 |
| Poly Plug Square Head | 1002171 | $4.50 |
| Hydrobike Frame Assembly | Factory Part # | Price |
| Frame Assembly | 2410 | $859.00 |

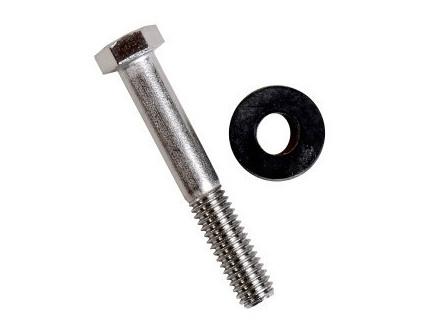

| Frame Bolt & Rubber Washer | 2190 | $3.95 |
| Chain Tensioner Roller | 1004653 | $8.90 |

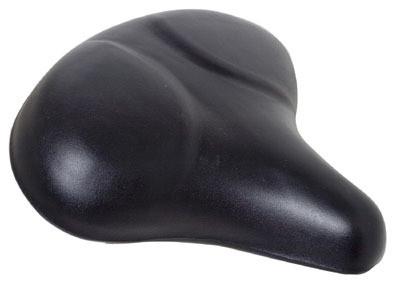

| Seat 10″ Width | 1431 | $32.00 |

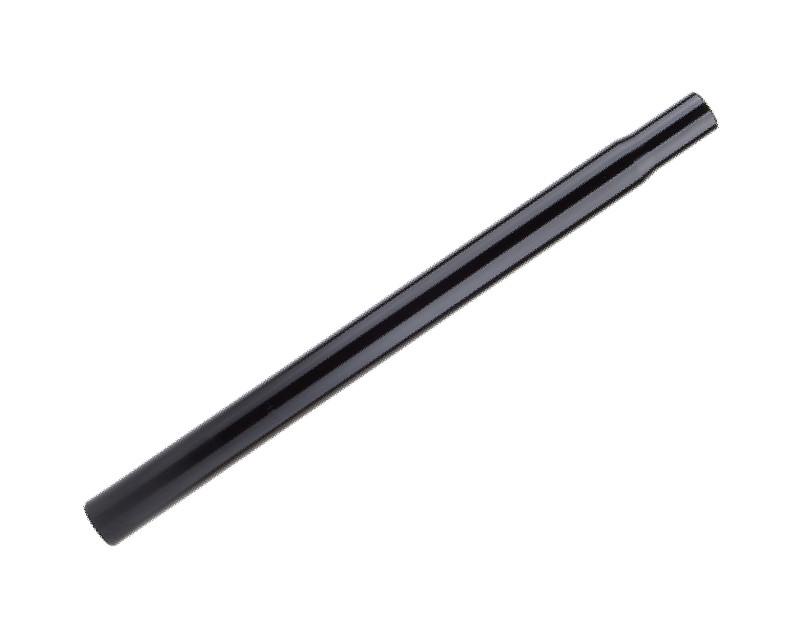

| Seat Post 1.0 x 17″Chrome Steel | 1432 | $21.90 |

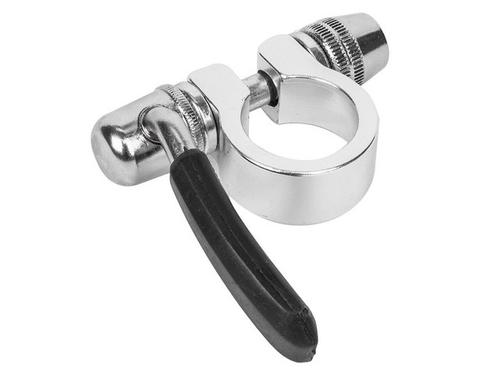

| Seat Post Clamp 1.125 Diam Alloy | 2430 | $17.75 |
| Seat Quick Release Steel Internal Cam | 1002122 | $9.50 |
| Handle Bar 2-4 rise 22-25″ Length | 1435 | $29.90 |

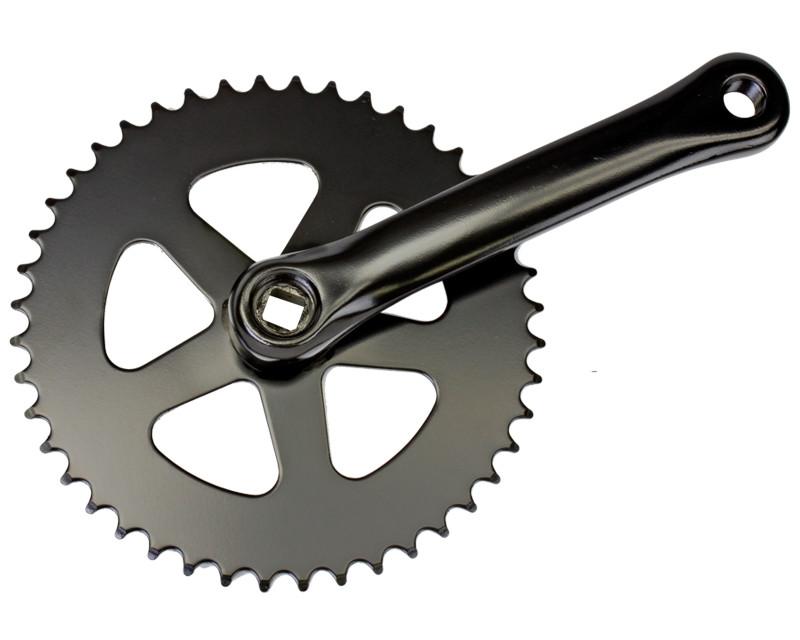

| Crank Arm with bolts175mm x 10mm | 2455 | $72.00 |

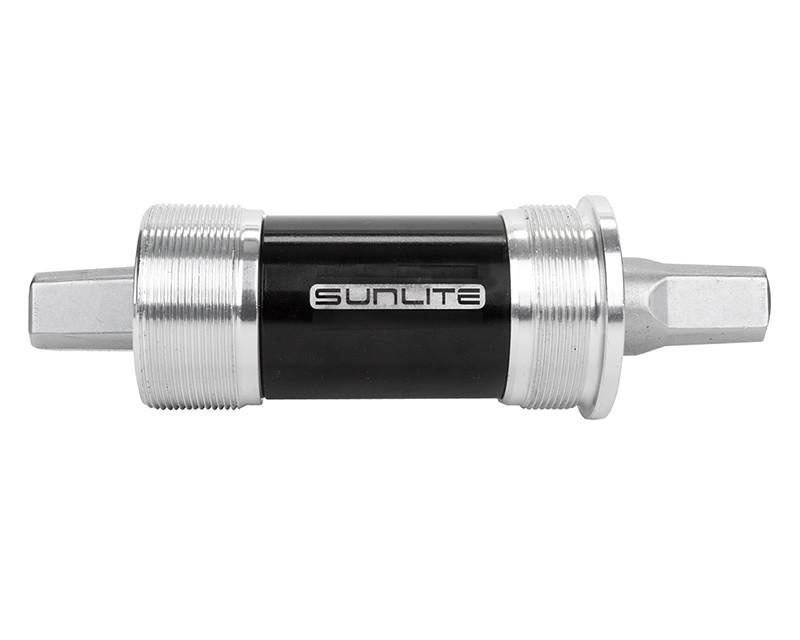

| Bottom Bracket Curve 68/122.5 | 1411 | $38.50 |

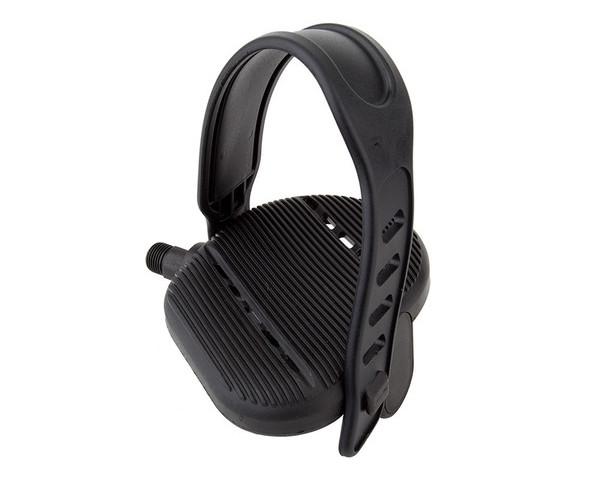

| Pedal Set 2″ Wide Strap | 1438 | $32.90 |

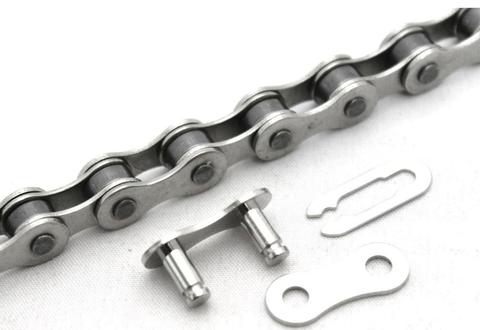

| Rustbuster Chain 112 Link .5 x .125 | 1456 | $29.95 |
| Nut Nyloc 10-32 Thin | 1002154 | $.59 |

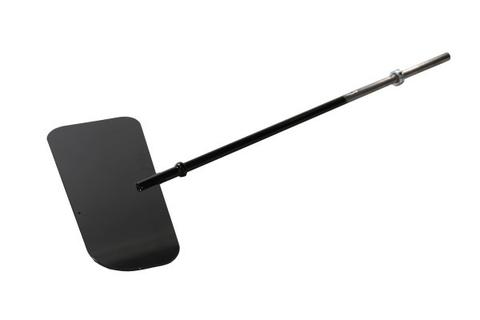

| Front Rudder Assembly | 2440 | $229.00 |

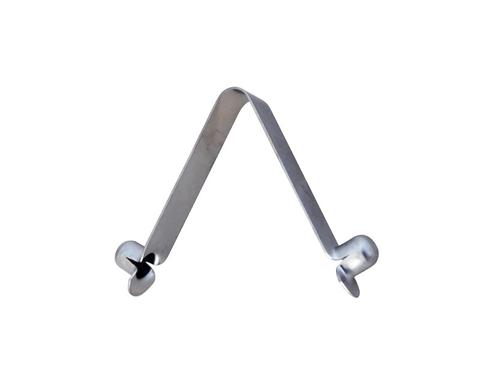

| Rudder Spring Clip, Double Button | 1445 | $8.15 |
| Rudder Collar, 1″ Bore Aluminum | 1442 | $9.60 |

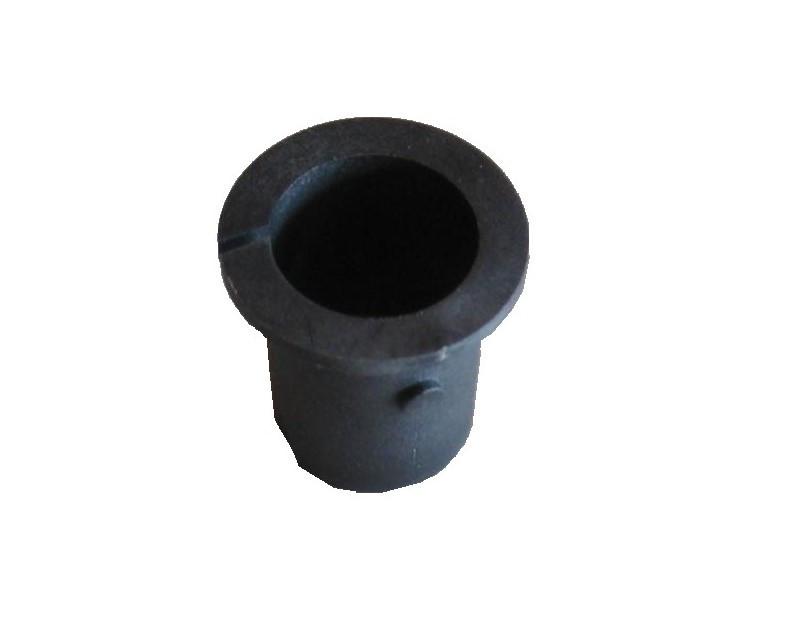

| Steering Bushing | 1412 | $9.85 |
| Screw Pan Phillips 10-24 x 1.625 18-8 | 1002186 | $.59 |
| Frame Sub Assembly | Factory Part # | Price |
| Spacer .171″ ID x .5″ OD x 7/8 Nylon | 1002187 | $1.85 |
| Spacer .194″ ID x .5″ OD x 3/4 Nylon | 1002188 | $1.85 |
| Spacer .18 ID x .26 OD x 9/16 Nylon | 1002191 | $1.85 |
| Spacer .248 ID x .38 OD x 9/16 Nylon | 1002195 | $2.85 |
| Screw Pan Phillips SMS #14 x 1.25 | 1002196 | $.59 |

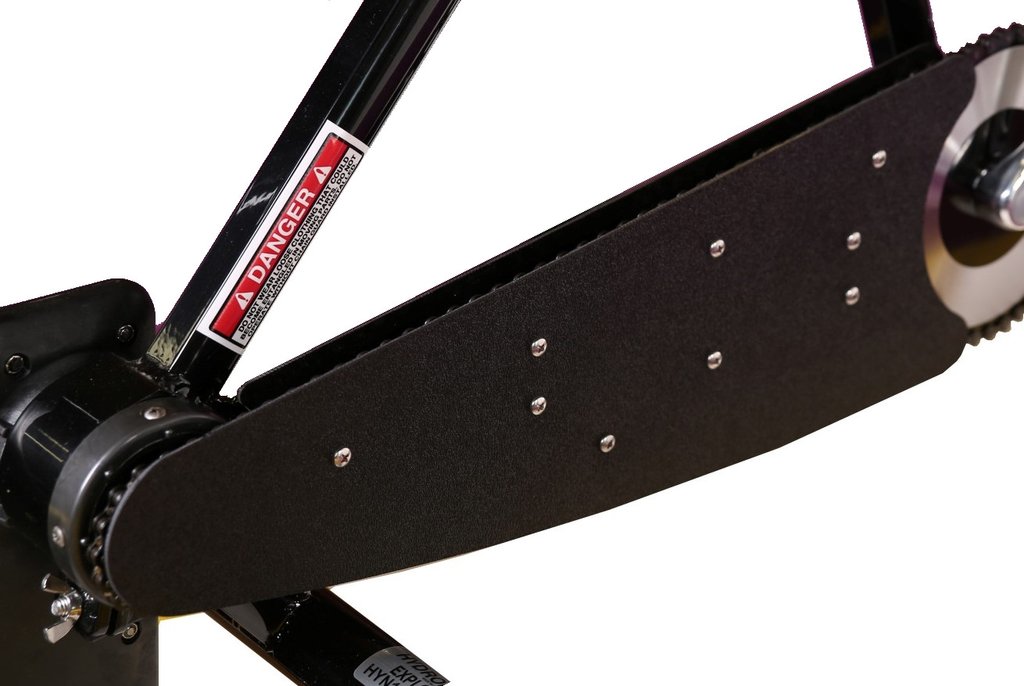

| Chain Guard Assembly | 2480 | $91.00 |
| Chain Ring Bolt Set | $17.50 | |
| Decal Kit with SM Logo | 1002256 | $21.95 |
| Spare Parts Kit | 1008100 | $49.00 |

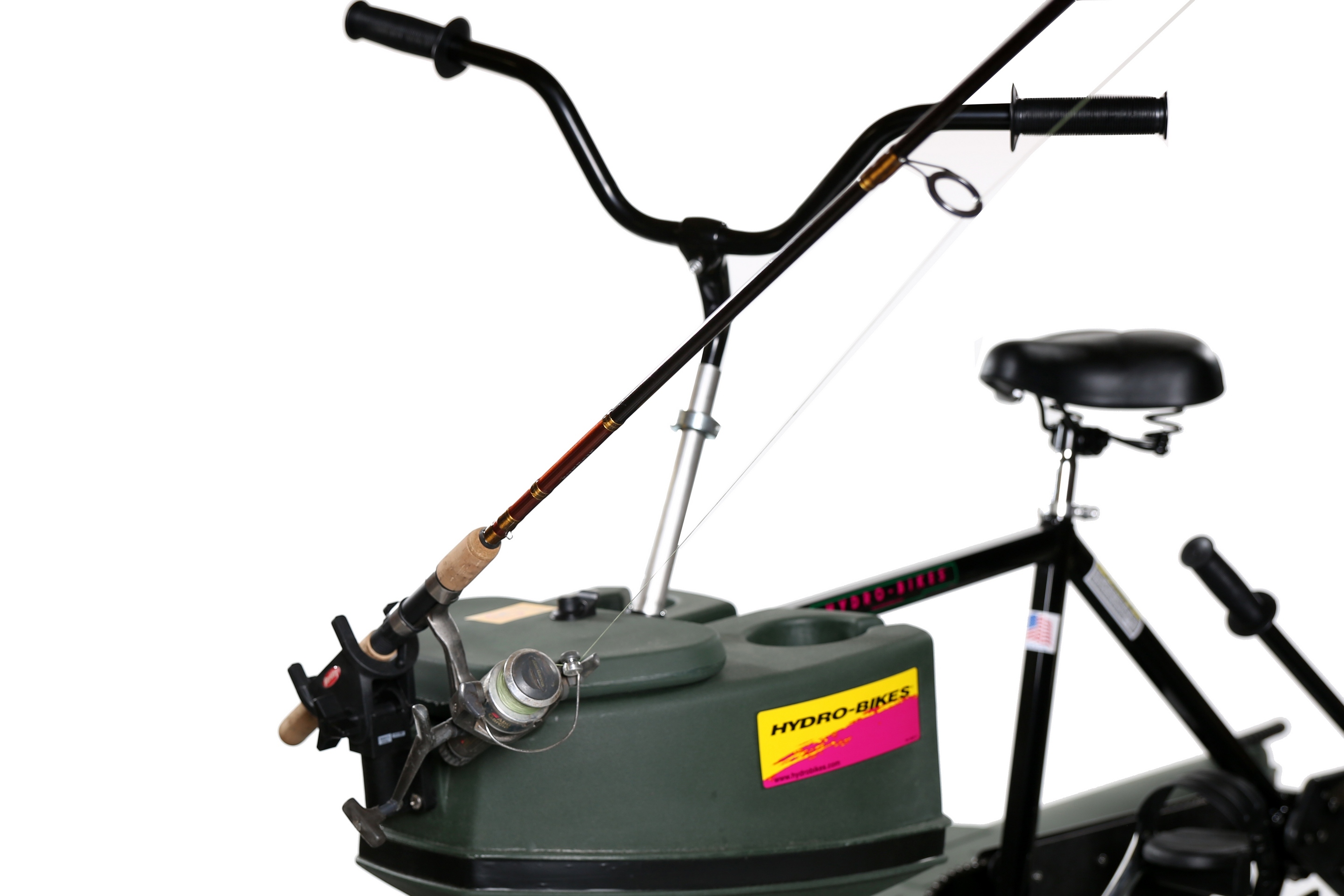

| Fishing Rod Holder, Mount, Screws | 1008102 | $29.99 |

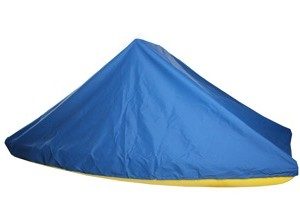

| Hydrobike Cover | 1002204 | $229.00 |
